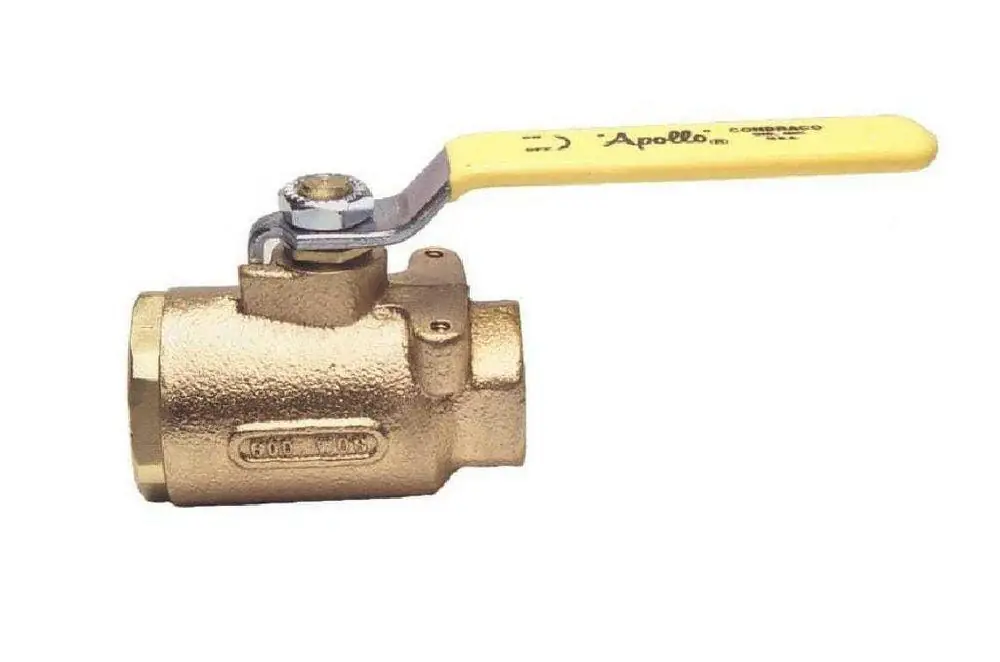

Apollo Valves 7710401 77-100 Series 3/4 Inch Bronze Full Port FNPT 600 Ball Valve Trusted Brand

The Apollo Valves 7710401 is a 77-100 Series Ball Valve. It features a 3/4 inch full-port FNPT connection and a 600 psi rating. Designed for commercial and industrial use, it offers high-performance and reliability with a bronze body for added durability.

• RPTFE seats and stuffing box ring
• Adjustable packing gland
• Full port for full flow and minimal pressure drop

Product Highlights

This ball valve is constructed with a blow-out proof stem design and a mounting pad for easy actuating. It is made in the USA and factory tested to ensure quality performance.

Product Information

Standard Information

• Brand: Apollo Valves
• MPN: 7710401

Technical Specifications

• Ball Material: Chrome-Plated Brass
• Connection Size: 3/4 in
• Connection Type: FNPT
• Dimension: 3.12 in L
• Flow Co-Efficient: 51 Cv
• Handle Material: Zinc-Plated Steel with Vinyl Grip Handle
• Material: Bronze
• Material Specifications: ASTM B16, ASTM B283, C37700, ASTM B584, C84400
• Operator Type: Lever
• Pressure Rating: 600 psi CWP, 150 psi WSP
• Seat Material: RPTFE
• Series: 77
• Stem Material: Brass
• Temperature Rating: 500 deg F
• Type: 2-Piece, Full-Port
