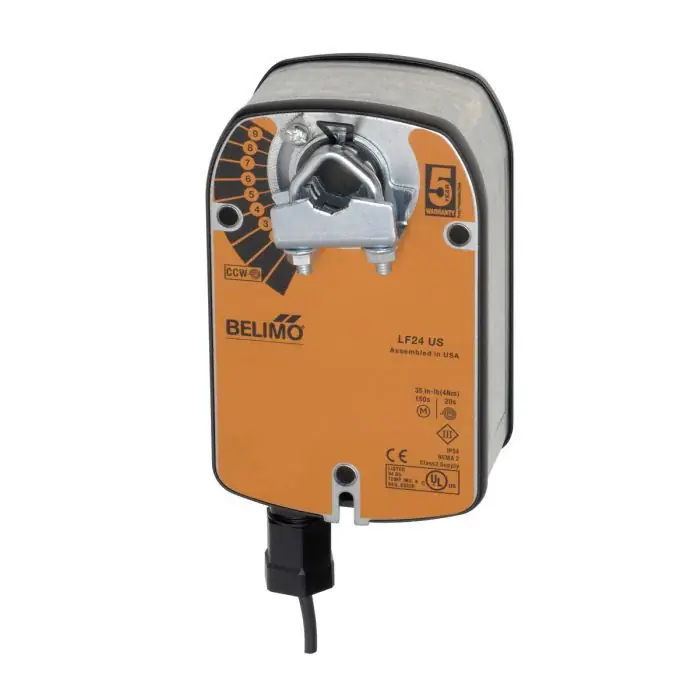

Belimo LF24-MFT-S US Damper Actuator 35 in-lb Factory Price

The Belimo LF24-MFT-S US is a direct coupled actuator designed for modulating control of dampers in HVAC systems. This model delivers a torque of thirty-five inch-pounds and operates on twenty-four volts AC. The actuator incorporates multi-function technology and spring return functionality for effective fail-safe operation.

• Provides consistent torque to the damper with power applied or not.
• Designed to be stalled anywhere in its rotation without mechanical end switches.
• Includes auxiliary switches for additional functionality.

Product Highlights

This actuator is suitable for applications where reliable damper control is needed, ensuring tight shut-off and effective airflow management.

Product Information

Standard Information

• Brand: Belimo
• MPN: LF24-MFT-S US

Technical Specifications

• Housing: NEMA 2, IP54
• Auxiliary Switch: 1 x SPDT
• Power Consumption: 2.5 W Running, 1 W Holding
• Operating Conditions: -22 F To 122 F (-30 C To 50 C)
• Electrical Connection: Two 3 ft. 18 GA Appliance Cables With 1/2 in. Conduit Connectors
• Angle of Rotation: 90 degrees
• Fluid Compatibility: Chilled or hot water up to 60% glycol steam
• Control Range: 90 degrees rotation
• Voltage: AC/DC 24 V
