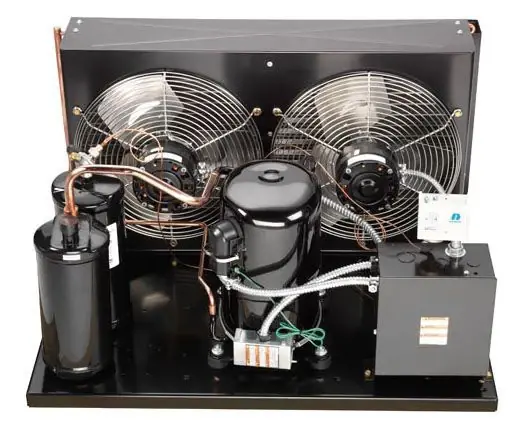

Brand New Tecumseh 2B3127-9 AVA4540EXNXM Condensing Unit 230V/60Hz

Tecumseh AVA4540EXNXM 2B3127-9 Condensing Unit 230V/60Hz

Description:
39400 BTU/Hr, 208 to 230 VAC 60 Hz 1-Phase, 3 HP, 16 Gauge Galvanized G90U Hot Rolled and Painted/Cold Rolled Steel Base Plate, Copper Tube and Aluminum Fin Condenser, R22, PSC Motor, High Starting Torque, Large Reciprocating, Standard Air Cooled, High Temperature, Advanced Commercial Design, Condensing Unit

Features / Benefits
FLEXIBILITY Single or Dual fan configurations with PSC motors
Tecumseh’s Large Reciprocating compressors are known for durability and dependability
Standard features include PSC condenser fan motors, liquid line receiver tank, high/low pressure cut-out switches and, low or dual pressure controls which contribute to their reliable operation

Specifications
Cooling Capacity: 39400 BTU/Hour
Current Rating: 29.3 Amp (MCA), 50 Amp (Fuse)
Frequency Rating: 60 Hertz
Item
Code: AVA4540EXNXM
Number Of Phases: 1
Operating Temperature: 45 Deg F (Evaporator), 90 Deg F (Ambient)
Power Rating: 3 HP
Series/Model: AVA4540EXNXM
Size: 33.7 Inch Length x 25 Inch Width x 19.5 Inch Height
Type: Large Reciprocating, Standard Air Cooled, High Temperature, Advanced Commercial Design
Voltage Rating: 208 to 230 Volt AC
Weight: 223 Pound
