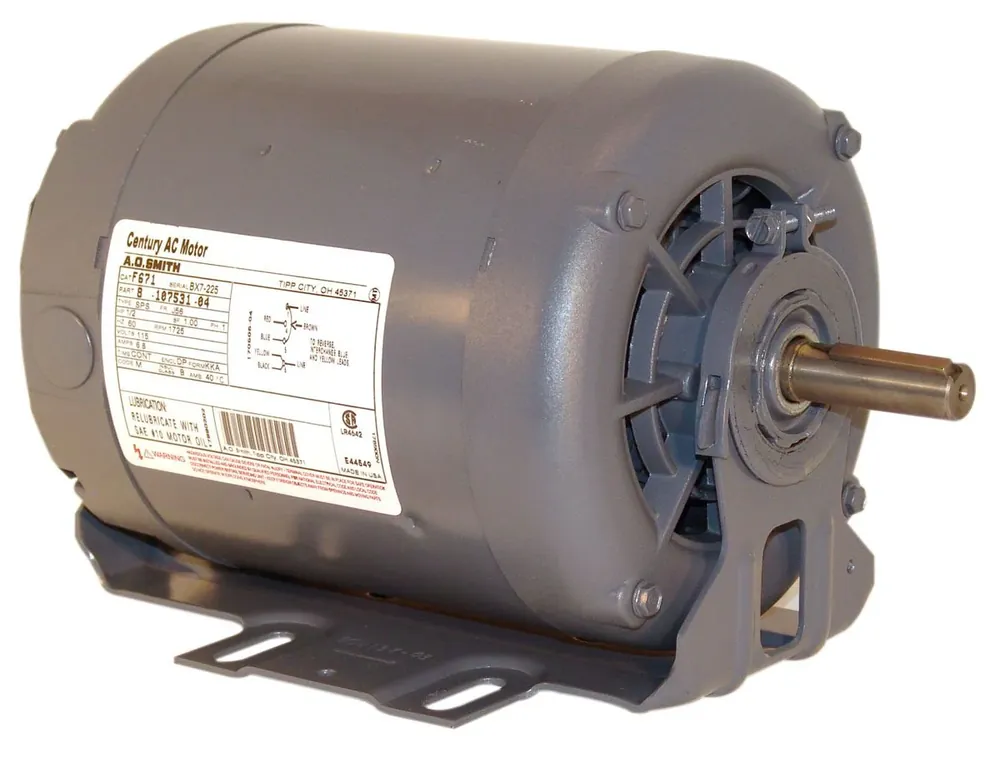

Century F681 Split Phase Resilient Base Sleeve Bearing Motor 3/4 HP 230/115V 1725 RPM High Quality

The Century F681 is a reliable split phase motor known for its efficiency and versatility. With a power rating of three fourths horsepower (3/4 HP) and an operating speed of one thousand seven hundred twenty-five revolutions per minute (1725 RPM), this motor is suitable for various applications. It operates at dual voltage settings of one hundred fifteen/one hundred thirty volts (115/230V), making it appropriate for diverse electrical systems.

• Continuous duty operation
• Reversible motor function
• Thermal overload protection

Product Highlights

This motor is designed for continuous duty use, making it ideal for fans, blowers, and similar applications. The sleeve bearing increases reliability and longevity.

Product Information

Standard Information

• Brand: Century
• MPN: F681

Technical Specifications

• Voltage: 230/115V
• Horse Power: 3/4 HP
• RPM: 1725
• Frame Size: 56
• Amperage: 10.4 / 5.2
• Motor Length: 11.5 inches
• Motor Diameter: 6.5 inches
• Shaft Size: 5/8 x 1-7/8 inches
• Insulation Class: B
• Enclosure Type: Open Drip Proof
