Century UE316 General Purpose Motor 7.5 HP 200V New Arrival
Home / General Purpose Motors / Century UE316 General Purpose Motor 7.5 HP 200V New Arrival

Century UE316 General Purpose Motor 7.5 HP 200V New Arrival

Original price was: $14.99.Current price is: $7.50.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0056823 Category: Tag:
Share

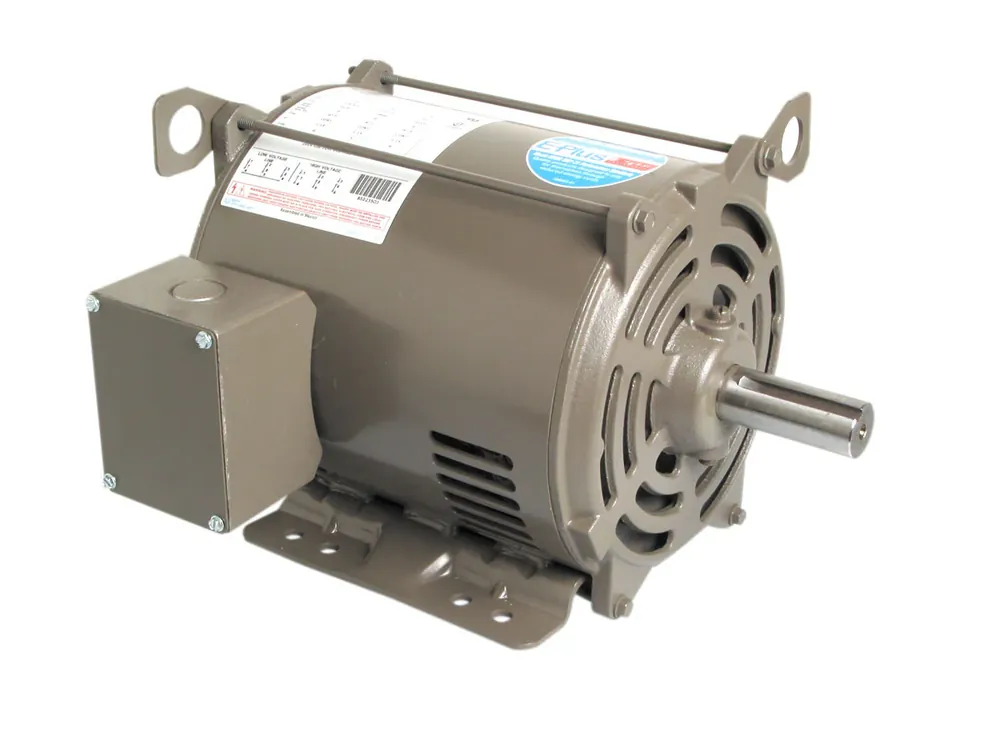

The Century UE316 is a general purpose motor designed for various applications. With a horsepower of seven and one-half and a voltage rating of two hundred volts, this motor operates efficiently at seventeen hundred RPM. The motor features a rigid base mounting configuration and is built from rolled steel for durability.

  • Electrical Type: Three Phase
  • Frame Size: S213T
  • Overload Protection: None

Product Highlights

This motor is suitable for commercial tasks where reliability is essential. It meets or exceeds all USA mandated efficiencies while providing a variable torque ratio of six to one, making it versatile for different operating conditions.

Product Information

Standard Information

  • Amperage: 21.4
  • Phase: Three

Technical Specifications

  • Enclosure: Drip Proof
  • Shaft Diameter: 1.375 inches
  • Shaft Extension: 3.500 inches
  • Weight: 122 lbs
  • Dimensions: 22 inches (Length) x 15.25 inches (Width) x 13.38 inches (Height)
  • Country of Origin: Mexico
  • Replaced Part Number: 213TTDBD6039
