Century UH254ES General Purpose Motor Polyphase 0.5HP 230/460V 3450RPM 56C Trending
Home / General Purpose Motors / Century UH254ES General Purpose Motor Polyphase 0.5HP 230/460V 3450RPM 56C Trending

Century UH254ES General Purpose Motor Polyphase 0.5HP 230/460V 3450RPM 56C Trending

Original price was: $168.49.Current price is: $67.40.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0056872 Category: Tag:
Share

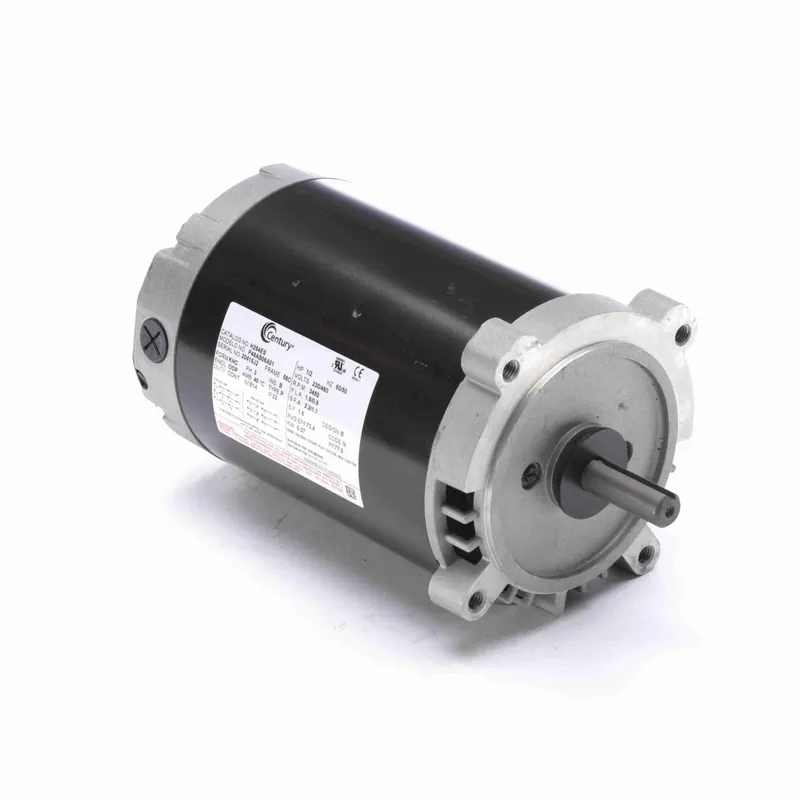

The Century UH254ES General Purpose Motor is designed for various applications requiring reliable power. This polyphase motor delivers 0.5 horsepower and operates at voltages of 230/460V. Its 3450 RPM speed, along with an open drip-proof enclosure, makes it suitable for multiple environments.

  • UL recognized component listing and CSA certification ensures safe usage.
  • Premium efficiency for improved reliability.
  • Heavy-duty design with permanently lubricated sealed bearings.

Product Highlights

This general-purpose motor features a robust rolled steel construction, ensuring enhanced durability and longevity. It is designed to perform efficiently with minimal maintenance, making it ideal for continuous duty applications.

Product Information

Standard Information

  • Brand: Century
  • MPN: UH254ES

Technical Specifications

  • Electrical Type: Polyphase
  • Horsepower: 0.5HP
  • KW: 0.37
  • Frame: 56C
  • Diameter: 6.5 inches
  • Enclosure: Open Drip Proof
  • Phase: Three
  • Voltage: 230/460
  • Rotation: Clockwise/Counterclockwise
  • Material: Rolled Steel
  • Bearings Type: Ball / Ball
  • Mounting: Round
  • Amperage: 1.8/0.9
  • Shaft Type: Keyed
  • Shaft Diameter: 0.625 inches
  • Shaft Extension: 1.94 inches
  • RPM: 3450
  • Duty: Continuous
  • Efficiency: 73.4%
  • Frequency: 60 Hz
  • Insulation Class: B
  • Poles: 2
  • Service Factor: 1.6
  • Ambient Temperature: 40 degrees Celsius
