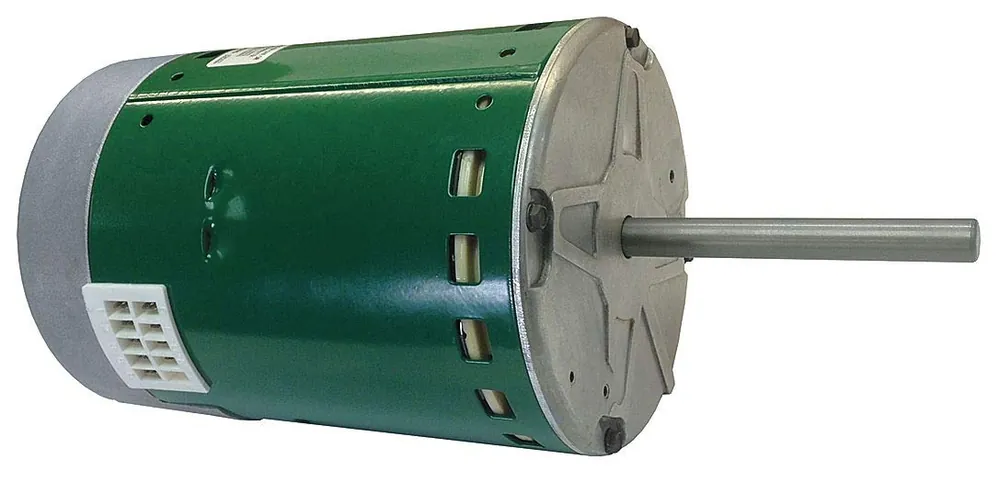

Don’t Miss Out Genteq 6105E Evergreen Motor 1/2 HP 115V

The Genteq 6105E Evergreen Motor is a 1/2 HP motor operating at 115V. It is designed to replace OEM ECM X13 motors without complicated programming, providing high efficiency and reliable performance.

• 1/2 HP motor operating at 115V
• Replaces OEM ECM X13 motors
• High efficiency and reliable performance

Product Highlights

This motor features a multi-speed, constant torque, brushless DC design. It includes encapsulated electronics with 4kV surge protection and electronic overload protection. The motor is suitable for residential and light commercial indoor furnaces, air handlers, and package systems.

Product Information

Standard Information

• Application: Fan and Blower
• Approval: UL
• Frame Material: Rolled Steel
• Includes: 42 Inch Lead

Technical Specifications

• Power Rating: 1/2 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 6.8 Amp
• Number Of Speeds: 5
• Speed Rating: 1075 RPM
• Reversible: Yes
• Service Factor: 1
• Efficiency: 80 Percent
• NEMA Frame Size: 48
• Insulation Class: B
• Weight: 13 Pound
• Frame Length: 4.82 Inch
• Shaft Size: 0.5 Inch Diameter x 4.92 Inch Length (Extension)
• Ambient Temperature Rating: 40 Degrees C
• Enclosure Type: Semi Enclosed, Open Air-Over
• Mounting: Round Frame
• Bearings: Ball (Drive End/Opposite Drive End)
• Type: Electronically Commutated Motor
• Shaft Type: Flat
• Orientation: Horizontal
• Poles: 12
