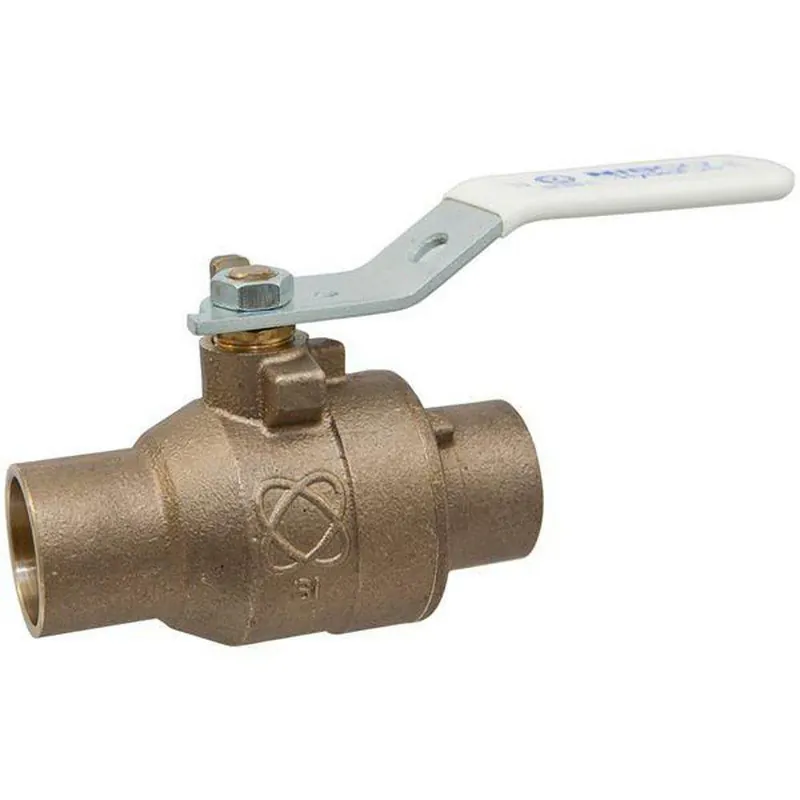

Don’t Miss Out Nibco NJ830XA S-585-80-LF 1 in. Silicon Bronze Full Port Solder 600 Ball Valve

The Nibco NJ830XA S-585-80-LF 1 in. Silicon Bronze Full Port Solder 600 Ball Valve is an essential component for controlling the flow of water in various residential and commercial applications. Made from Silicon Performance Bronze, this ball valve offers reliable performance and durability.

• Silicon Performance Bronze body, ball, and stem
• Full port for maximum flow
• 600 psi pressure rating

Product Highlights

This Nibco ball valve features a blowout-proof stem and is designed to resist dezincification. It has a standard lever handle and conforms to MSS SP-110 standards. The valve’s maximum temperature rating is 300 degrees Fahrenheit, making it suitable for a wide range of applications.

Product Information

Standard Information

• Brand: Nibco
• MPN: NJ830XA
• Category: Valves

Technical Specifications

• Actuator Type: Lever Handle
• Ball Material: Silicon Bronze
• Body Material: Silicon Bronze
• Domestic/Import: Domestic
• End Style: Solder
• Inlet to Outlet Length: 3.99 in
• Media: Water
• Nominal Size: 1 in
• Orifice Size: 1 in
• Port Type: Full
• Pressure Rating: 600 psi
• Series: S-585-80-LF
• Softgoods Material: PTFE
• Temperature Rating: 300 deg F
• Top to Inlet Center: 2.48 in
• Trim Material: Silicon Bronze Stem
• Type: 2-Piece
