Erie VM2221T33A00T 1/2 2-Way NPT Floating Non-Spring Return Zone Valve 24V Must Have
Home / Zone Valves / Erie VM2221T33A00T 1/2 2-Way NPT Floating Non-Spring Return Zone Valve 24V Must Have

Erie VM2221T33A00T 1/2 2-Way NPT Floating Non-Spring Return Zone Valve 24V Must Have

Original price was: $177.87.Current price is: $71.15.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0027659 Category: Tag:
Share

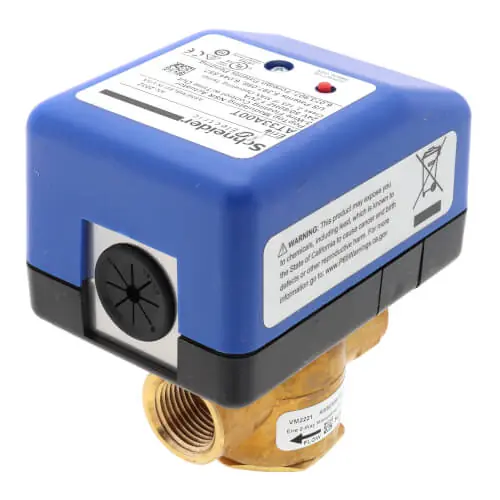

The Erie VM2221T33A00T is a floating, non-spring return zone valve with a two-way NPT connection. This valve is ideal for various heating, ventilation, and air conditioning (HVAC) applications. It operates on 24V and features a flow capacity of 1 CV.

  • Size: 1/2 inch
  • Body Pattern: 2-Way
  • Electric Actuator

Product Highlights

Built for easy, tool-less installation, this valve offers efficient and reliable control for your HVAC systems.

Product Information

Standard Information

  • Manufacturer: Schneider Electric (Erie)
  • Model: VM2221T33A00T

Technical Specifications

  • Size: 1/2 inch
  • Body Pattern: 2-Way
  • Connection Type: Threaded
  • Flow Capacity (Cv): 1
  • Actuator Type: Electric
  • Voltage: 24V
  • Non-Spring Return: Yes
  • Power Input Voltage: 24 VAC
  • Control Signal: 0 to 10 VDC or 4 to 20 mAdc
  • Mechanical Movement: Rotary
  • Auxiliary Switch: 1 SPDT
  • Protection Rating: NEMA 1
