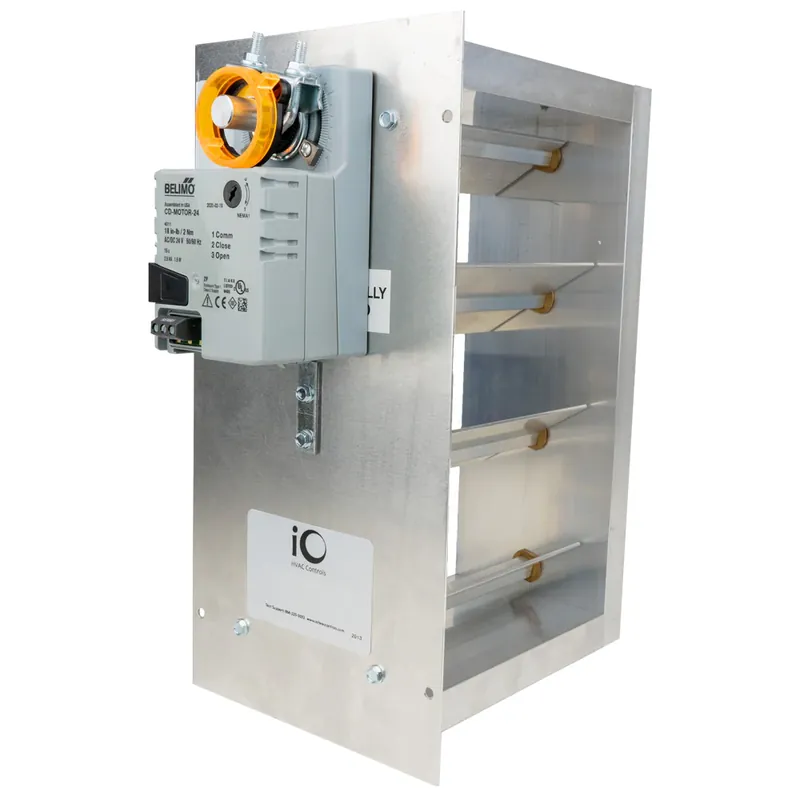

Express Delivery iO HVAC Controls CD-2016-BM 20 x 16 CarrierBryant Rectangular Zone Damper – Belimo 3 Wire Actuator – Bottom Mount

iO HVAC Controls CD-2016-BM20 Inch X 16 Inch Carrier Rectangular Zone Damper With Bottom Mount ActuatorFeatures:- 20 inch X 16 inch rectangular.- 10 year warranty.
DIMENSIONS:- Damper models CD-XXXX are sized width (A) by height (B) with actuator on the (B) dimension.- Bottom mount models CD-XXXX-BM are sized width (A) by height (B) with actuator on the (A) dimension.- Actual (A) and (B) dimensions are undercut 1/4”.- Standard sizes range from 8” x 8” up to 36” x 24” in 2” increments.
APPLICATION:Compatible for Carrier® and Bryant® Infinity™ and Evolution™ zone control systems.
CONSTRUCTION:- 1/16” extruded aluminum frame- 1/16” extruded aluminum parallel blades- 1/16” aluminum mounting flange- Nylon bushings- Minimum position adjustment
ELECTRICAL:-24Volt, 2.1 VA-3-Wire-15 second timing-18 lb.-in.
CD Series offers a wide selection of both round and rectangular dampers that are compatible with the Carrier® Infinity™ and Bryant® Evolution™ zone control systems.
