Final Sale US-Nidec T14S3DCR General Purpose Motor 1/4 HP 208-230/460V 1200 RPM Frame 56
Home / General Purpose Motors / Final Sale US-Nidec T14S3DCR General Purpose Motor 1/4 HP 208-230/460V 1200 RPM Frame 56

Final Sale US-Nidec T14S3DCR General Purpose Motor 1/4 HP 208-230/460V 1200 RPM Frame 56

Original price was: $280.81.Current price is: $112.32.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0056970 Category: Tag:
Share

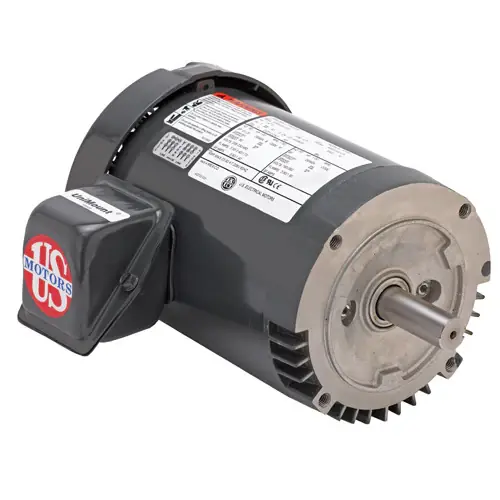

The US-Nidec T14S3DCR General Purpose Motor, with MPN T14S3DCR, offers reliable performance for various industrial applications. Designed for fans, blowers, compressors, pumps, and other direct connected equipment.

  • 1/4 HP motor providing consistent operation
  • 208-230/460 voltage to suit different power requirements
  • 1200 RPM ensuring optimal speed for tasks

Product Highlights

This general purpose motor from US-Nidec is versatile and durable, making it ideal for various industrial environments.

Product Information

Standard Information

  • Brand: US-Nidec
  • MPN: T14S3DCR

Technical Specifications

  • Horsepower: 1/4 HP
  • RPM: 1200
  • Voltage: 208-230/460
  • Frame Size: 56
  • Enclosure: TEFC
  • Phase: Three
  • Material: Rolled Steel
  • Diameter: 6.5 inches
  • Amperage: 1.4-1.4/0.7
  • Rotation: REV
  • Bearings: Ball
  • Mounting: C-Face / Footless
  • Shaft Type: Single
  • Efficiency: 75.50%
  • Insulation Class: B
  • Service Factor: 1.15
  • C Dimension: 11.3 inches
