Genteq Motors 3727 1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/6 HP, 1075 RPM (208/230V) Deal
Home / Condenser Fan Motors / Genteq Motors 3727 1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/6 HP, 1075 RPM (208/230V) Deal

Genteq Motors 3727 1 Speed Condenser Fan & Heat Pump Motor w/ Shaft Up/Down 1/6 HP, 1075 RPM (208/230V) Deal

Original price was: $144.69.Current price is: $57.88.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0028602 Category: Tag:
Share

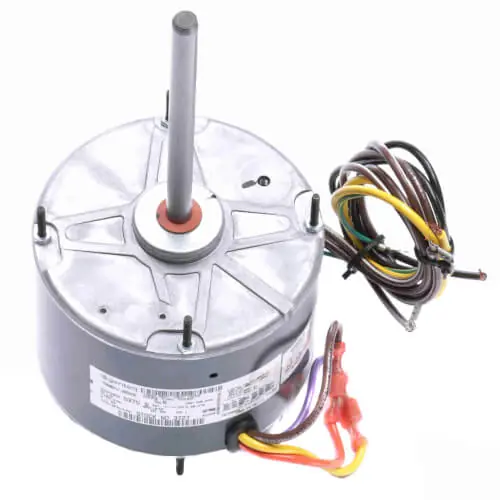

The Genteq Motors 3727 is a one-speed condenser fan and heat pump motor designed specifically for units that require vertical shaft up or down positioning. This motor accommodates installation with a belly band or extended clamp screw mounting. It operates at one-sixth horsepower and provides a speed of 1075 RPM with a voltage range of 208 to 230 volts.

  • Permanent split capacitor design
  • Standard efficiency with sleeve or ball bearings
  • Includes mounting holes for capacitor bracket

Product Highlights

The Genteq Motors 3727 features a thermally protected overload system and is suitable for continuous air over duty. This motor ensures reliable performance in HVAC applications.

Product Information

Standard Information

  • Brand: Genteq Motors
  • MPN: 3727

Technical Specifications

  • Horse Power: 1/6
  • RPM: 1075
  • Voltage: 208/230V
  • Amperage: 1
  • Frame Size: 48
  • Type: Permanent Split Capacitor
  • Bearings: Sleeve
  • Rotation: Reversible
  • Insulation Class: B
  • Weight: 9.8 lbs
  • Shipping Dimensions: 13.24 x 6.04 x 6.02 inches
  • Approvals: CSA, UL
  • Max Ambient Temperature: 104°F
