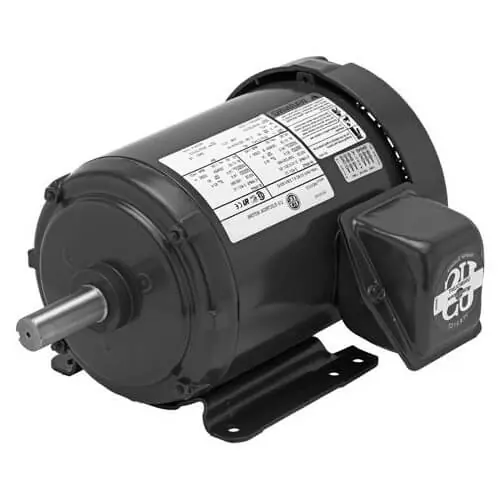

Genuine U.S. Motors T1P2AH General Purpose Three Phase TEFC Rigid Motor 1 HP 1800 RPM

The U.S. Motors T1P2AH is a general-purpose three-phase motor designed for various industrial applications. This motor operates at one horsepower and 1800 RPM, making it suitable for tasks requiring steady power. It features a totally enclosed fan-cooled (TEFC) design, which protects the internal components from dust and moisture, ensuring durability in demanding environments.

• Voltage rating ranges from 208 to 230/460 volts.
• Continuous duty for reliable performance.
• Rigid mount for secure installation.

Product Highlights

This motor is ideal for fans, compressors, pumps, and other direct-connected gear. Its robust construction includes a rolled steel frame and aluminum flanges, providing strength and corrosion resistance.

Product Information

Standard Information

• Brand: U.S. Motors
• MPN: T1P2AH

Technical Specifications

• Horsepower: 1 HP
• Full Load RPM: 1800 RPM
• Voltage Rating: 208-230/460 Volts
• Frequency: 60 Hz
• Frame Size: 56H
• Phase: Three Phase
• Full Load Amps: 3.3-3.2/1.5 A
• Insulation Class: B
• Efficiency: 85.5 %
• Service Factor: 1.15
• Weight: 35.5 LB
• C Dimension: 12.8 inches
• Mounting: Rigid
• Enclosure Designation: TEFC – Totally Enclosed Fan Cooled
