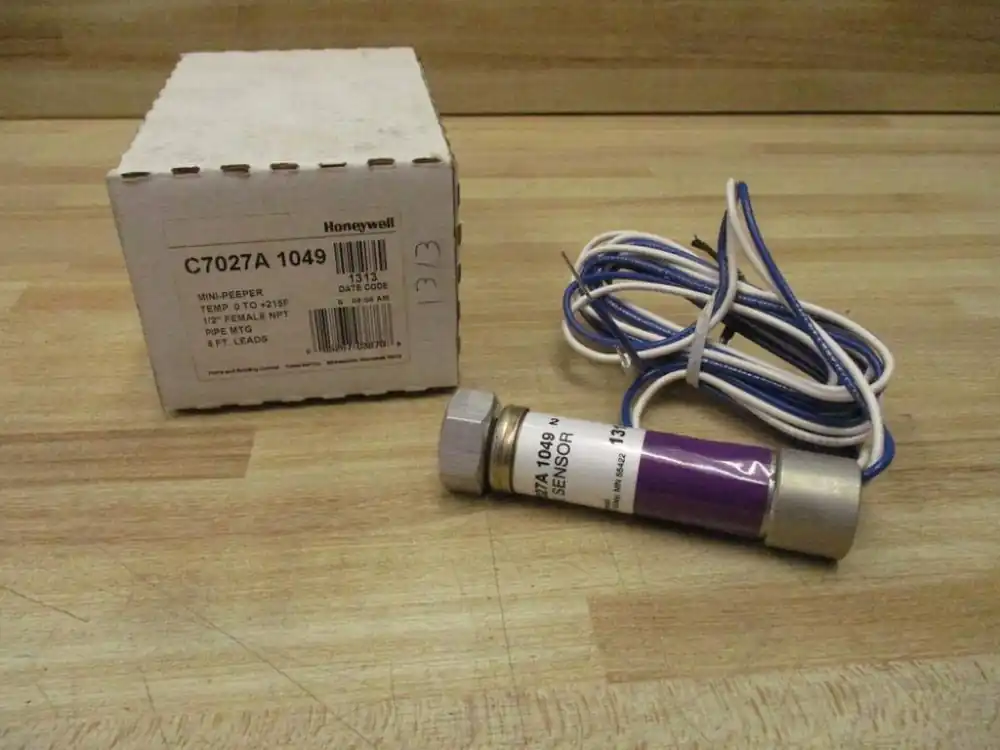

Honeywell C7027A1049 Flame Sensor Ultraviolet Minipeeper 7800 Controls C7027A Instant Buy

The Honeywell C7027A1049 Flame Sensor, known as the Minipeeper, is a compact ultraviolet flame detector designed for use with Honeywell flame safeguard controls. It is suitable for coal-fired, gas-fired, and oil-fired burners requiring ultraviolet flame detection. The C7027 mounts on a 1/2 inch sighting pipe using an integral collar. Wiring in parallel is possible for challenging sighting applications, and the sensor seals against pressures up to 5 psi when correctly installed. This compact size allows for versatile mounting options, including blast tube mounting.

• Ultraviolet flame sensor
• Compatible with Honeywell flame safeguard controls
• Seals against pressures up to 5 psi

Product Highlights

Honeywell C7027A1049 Minipeeper UV flame sensor, 0 to 215 degrees Fahrenheit range, 1/2 inch NPT threaded spud, 8-foot lead wire.

Product Information

Standard Information

• Brand: Honeywell
• Model: C7027A

Technical Specifications

• MPN: C7027A1049
• Weight: 0.54 pounds
• Dimensions: 0.31 x 0.31 x 0.28 inches
• Lead Length: 96 inches
• Ambient Temperature Range: 0 to 215 degrees Fahrenheit
• Mounting: Integral nut for 1/2 inch sighting pipe
• Electrical Connections: 2 NEC Class 1 lead wires
