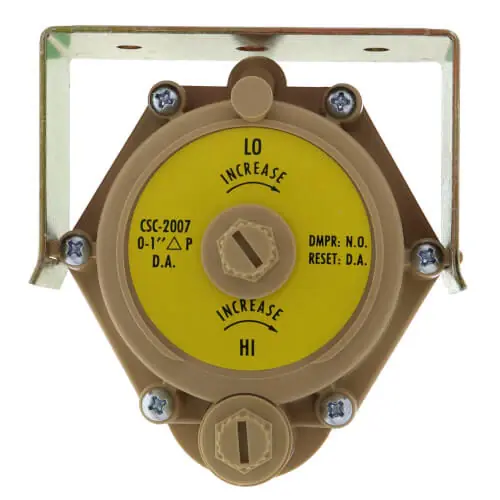

KMC Controls CSC-2007 Reset Volume Controller Direct Acting Brand New

The KMC Controls CSC-2007 Reset Volume Controller is an essential component for VAV terminal units in HVAC systems. It functions as a sub-master air velocity controller with adjustable minimum and maximum velocity limits.

• Direct acting model for normally open VAV terminal units.
• Includes mounting bracket for easy installation.
• Adjustable knobs for minimum and maximum airflow settings.

Product Highlights

The KMC Controls CSC-2007 is designed for direct acting applications, ideal for use in HVAC systems requiring precise airflow control. It is easy to install and calibrate with the use of airflow measuring equipment.

Product Information

Standard Information

• Brand: KMC Controls
• MPN: CSC-2007
• Type: Sub Master
• Color: Beige

Technical Specifications

• Air Consumption: 11.5 SCIM at 20 psig
• Main Air Pressure: 15 to 30 psig
• Max. Signal Pressure: 6 in wc
• Output Capability: 0 to Supply Pressure
• Reset Pressure Band: 8 +/-0.5 to 13 psig
• Operating Temp. Limit: 40 to 120 Degrees F
• Output Sensitivity: 5 PSI / 0.02 in wc
• Connection Ports: Push On Fittings For 1/4 in OD Tubing
• Thermostat Required for Cooling: DA
• Thermostat Required for Heating: RA
• Material of Construction: ABS
• Setpoint Range Minimum: 0 to 1 in wc
• Setpoint Range Maximum: Min + 1 in wc
• Includes: Mounting bracket
• Country of Origin: United States
