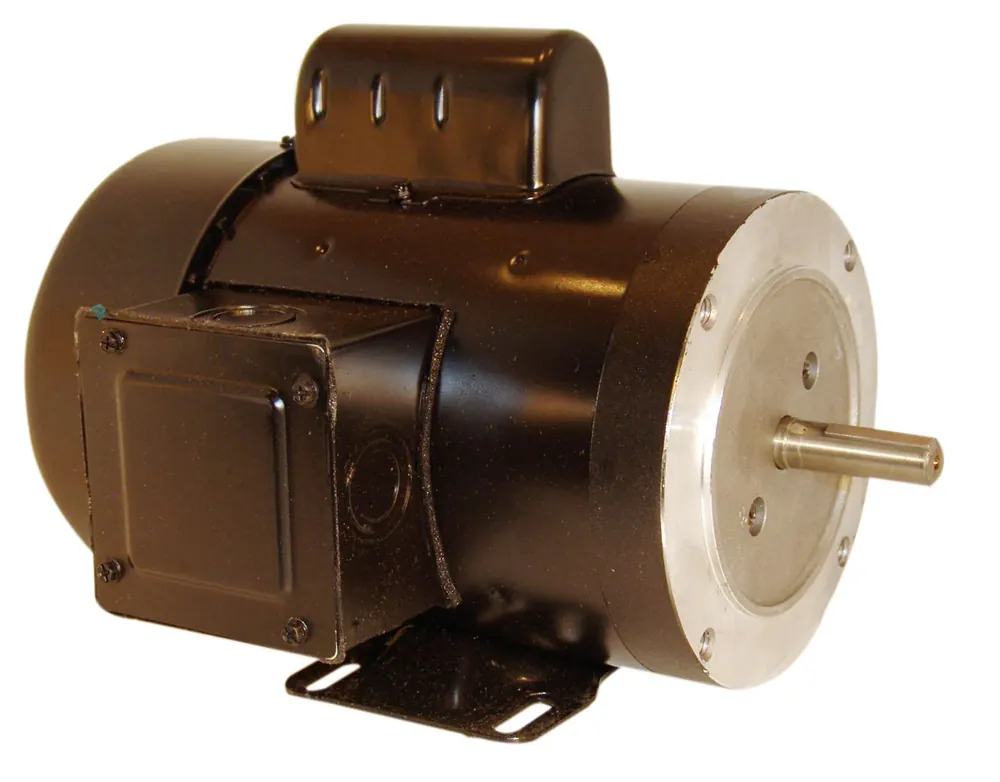

Last Chance Century UC824 General Purpose Motor 1/3 HP 1725 RPM
Home / General Purpose Motors / Last Chance Century UC824 General Purpose Motor 1/3 HP 1725 RPM

Last Chance Century UC824 General Purpose Motor 1/3 HP 1725 RPM

Original price was: $360.90.Current price is: $144.36.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0057162 Category: Tag:
Share

The Century UC824 General Purpose Motor is a versatile and reliable motor designed for various applications. It operates at 1/3 HP and 1725 RPM, providing efficient performance. The motor features a capacitor start, induction run, and rolled steel construction.

  • 1/3 HP, 1725 RPM motor
  • Totally Enclosed Fan Cooled (TEFC) enclosure
  • Single-phase, 115/208-230 voltage

Product Highlights

This motor is perfect for use in demanding environments where durability and reliability are crucial. It includes ball bearings, a reversible counterclockwise rotation, and a rigid base for secure mounting.

Product Information

Standard Information

  • Brand: Century
  • MPN: UC824

Technical Specifications

  • HP: 1/3
  • RPM: 1725
  • Frame: G56C
  • Diameter: 6.5 inches
  • Enclosure: Totally Enclosed Fan Cooled
  • Phase: 1
  • Voltage: 115/208-230
  • Rotation: Reversible Counterclockwise
  • Material: Rolled Steel
  • Bearings Type: Ball/Ball
  • Mounting: Rigid Base
  • Amperage: 6.4/3.2
  • Shaft Type: Keyed
  • Shaft Extension: 2.07 inches
  • Shaft Diameter: 0.625 inches
  • Duty: Continuous
  • Frequency: 60 Hz
  • Insulation Class: B
  • Poles: 4
  • Service Factor: 1.15
  • Service Factor Amperage: Primary
  • Start Method: Across The Line
  • Ambient Temperature: 40 degrees C
