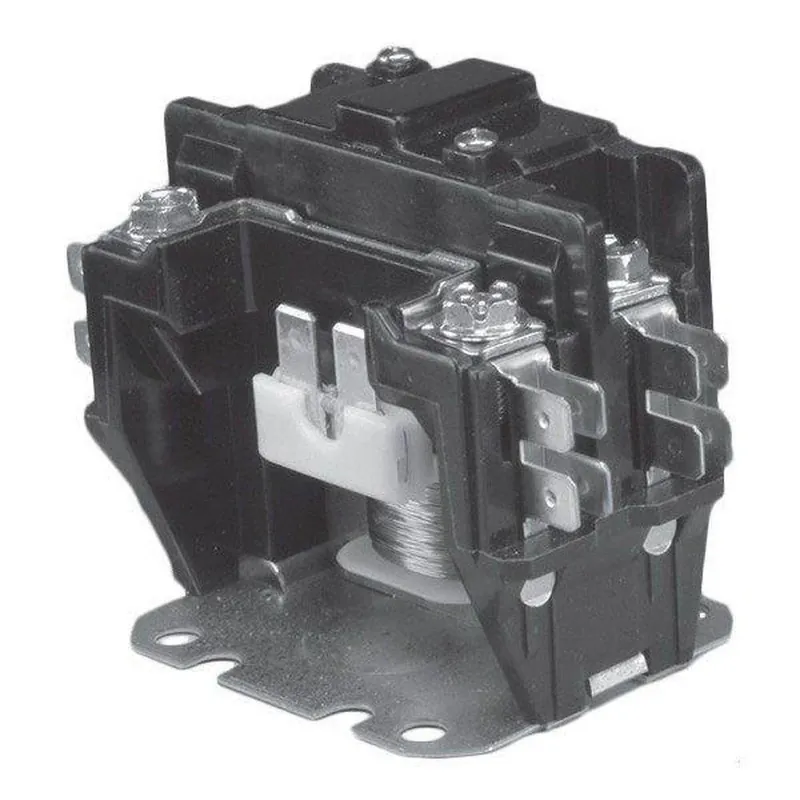

Last Chance White-Rodgers 94-394 SGL POLE 277V 40FLA CONT
Home / Breakers, Contactors & Disconnects / Last Chance White-Rodgers 94-394 SGL POLE 277V 40FLA CONT

Last Chance White-Rodgers 94-394 SGL POLE 277V 40FLA CONT

Original price was: $44.10.Current price is: $22.05.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0036149 Category: Tag:
Share

The WHITE-RODGERS 94-394 air conditioning contactor features straight-through wiring and is a definite purpose contactor. This 1-pole contactor is suitable for residential central air conditioning applications. It has screw and double 1/4 inch quick connect termination type. The contactor includes a cover and bus bar.

  • Replaces Many Contactors Used by OEM’s
  • Universal Style Mounting Bracket Fits Existing Mounting Holes
  • Screw Terminals and 1/4 Inch Quick Connect Terminals for Easy Installation

Product Highlights

The WHITE-RODGERS 94-394 contactor is designed for residential central air conditioning. It features universal mounting and easy installation with screw and quick connect terminals.

Product Information

Standard Information

  • Brand: WHITE-RODGERS
  • Manufacturer Part Number: 94-394
  • Country of Origin: United States

Technical Specifications

  • MPN: 94-394
  • Voltage Rating: 24 Volt AC
  • Current Rating: 40 Amp
  • Temperature Rating: -40 to 150 Deg F
  • Number of Poles: 1
  • Coils Frequency: 50/60 Hertz
  • Duty Cycle: Continuous
  • Mounting Type: Universal Mount
  • Used On Item: Residential Central Air Conditioning
  • Applicable Standard: UL, ARI
  • Termination Type: Screw and Double 1/4 Inch Quick Connect
  • Includes: Cover, Bus Bar
  • Size: 3-1/4 Inch Width x 2 Inch Depth x 2-1/2 Inch Height
  • Item: Contactor, WR/RBM TYPE 121, Straight-Through Wiring, 1 Pole, Definite Purpose
  • Manufacturer Name: White-Rodgers
  • Manufacturer Part Number: 94-394S1
  • Series/Model: 94
  • Hz: 50/60
  • Depth: 3.38 in
  • Width: 2 in
  • Height: 2.53 in
  • Reversing: No
  • Standards: CE, CSA
  • Full Load Amps-Inductive: 40 A
  • Full Load Amps-Resistive: 50 A
  • Coil: 24 VAC
  • Contacts: 40 Amp
  • Coil Data – DC Resistance: 16.5 Ohms
  • Coil Data – Current: 208 mA
  • Coil Data – VA (Nominal): 5 VA
  • Coil Data – Maximum VA (Inrush): 20 VA
  • Application: Air Conditioning
  • Type: Single Pole Definite Purpose
  • Voltage: 24V
  • Amperage: 40
  • Hertz: 60 50
  • DC Resistance: 16.5 ohms
  • mA: 208
  • Electric Connection: 1/4″ Quick-Connect Terminals, Screw Terminals
  • Operating Temperature: -40 to 150 deg F
  • Coil Voltage: 24 VAC
  • Maximum Load Current: 40 A
  • Frequency Rating: 50/60 Hz
  • Contact Rating: 277 to 600 V
  • Terminal: Screw and Double 1/4 in Quick Connect
  • Operating Cycles: 100000 Cycles
  • Dimensions: 2 in L x 2-1/2 in W x 3-1/4 in H
