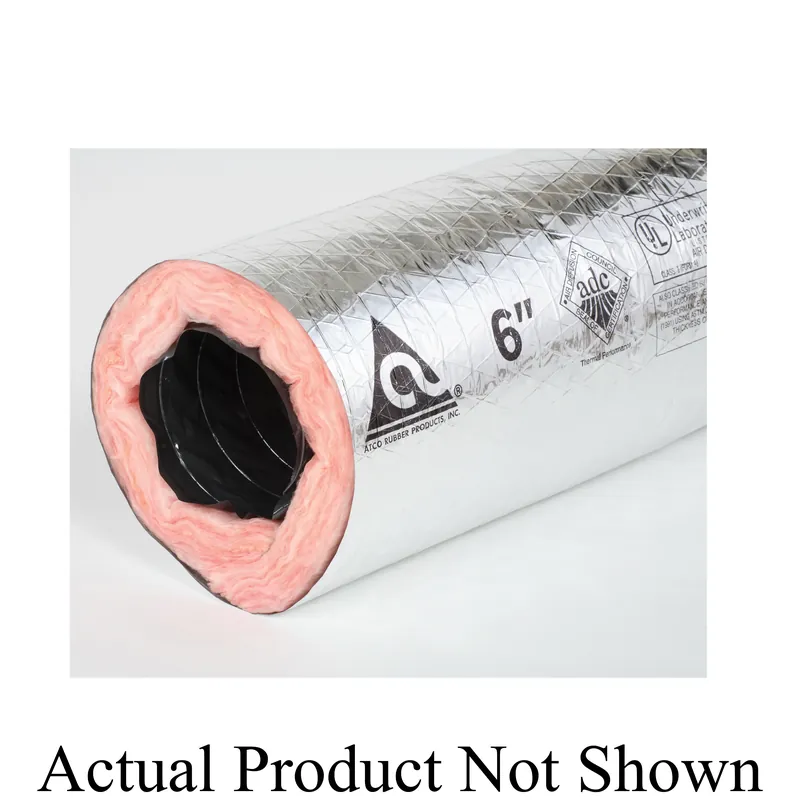

Latest Atco 13102414 031 Series Insulated Flexible Air Duct 14 in ID x 25 ft L R8 Insulation

The Atco 13102414 is an insulated flexible air duct, designed for heating and air conditioning applications. This duct features a fourteen-inch inside diameter and is twenty-five feet long. It is built for a flow rate of five thousand feet per minute, ensuring efficient air distribution. With R8 insulation, it minimizes thermal loss, making it suitable for various HVAC systems.

• Insulated for energy efficiency
• Durable polyester and fiberglass construction
• Supports a wide temperature range

Product Highlights

This product is ideal for both residential and commercial use as a supply and return air duct. It connects seamlessly to mixing boxes, diffusers, light troffers, and other terminal devices.

Product Information

Standard Information

• Brand: Atco
• MPN: 13102414

Technical Specifications

• Type: Insulated
• Material: Polyester/Fiberglass/Metalized Polyester
• Length: 25 ft
• Inside Diameter: 14 in
• Flow Rate: 5000 fpm
• Insulation Value: R8
• Temperature Rating: -20 to 140 deg F
• Pressure Rating: -3/4 to 4 in-WG
• Vapor Transmission: 0.05 perm
• Standards: UL 181, ASTM C-518, ICC-ES ESR-1268
• Country of Origin: US
