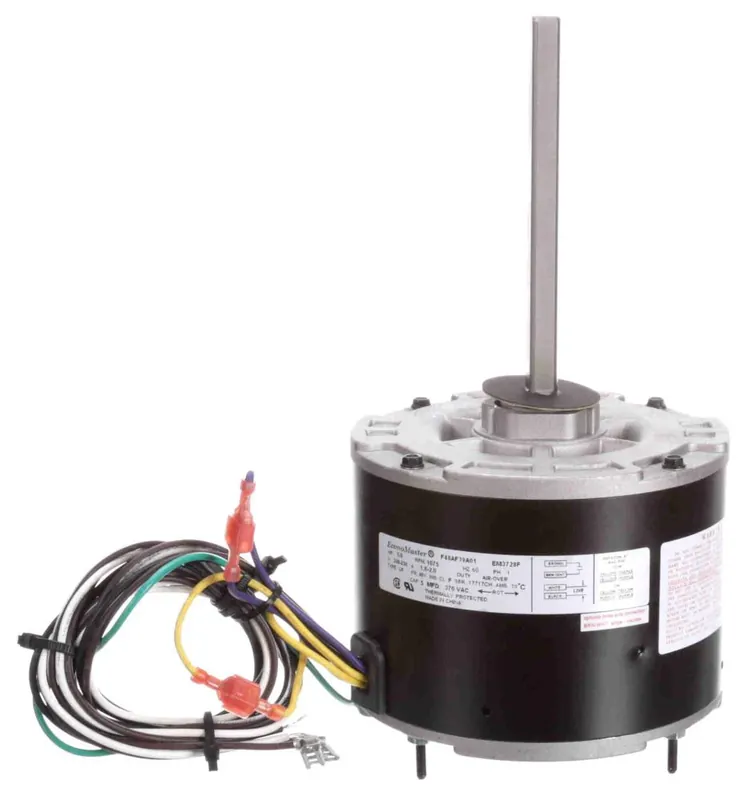

Limited Time Century EM3728F Condenser Fan Motor 1/4 HP 208 to 230 VAC 60 Hz NEMA 48Y
Home / Condenser Fan Motors / Limited Time Century EM3728F Condenser Fan Motor 1/4 HP 208 to 230 VAC 60 Hz NEMA 48Y

Limited Time Century EM3728F Condenser Fan Motor 1/4 HP 208 to 230 VAC 60 Hz NEMA 48Y

Original price was: $104.44.Current price is: $41.78.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0047734 Category: Tag:
Share

The Century EM3728F is a condenser fan motor designed for efficient operation with a power rating of one-fourth horsepower. It operates on a voltage range of two hundred eight to two hundred thirty volts AC in a single-phase circuit, suitable for a variety of HVAC applications. This motor features a steel frame, six poles, and runs at a speed of one thousand seventy-five RPM.

  • Power Rating: 1/4 HP
  • Speed: 1075 RPM
  • Reversible Rotation: Yes

Product Highlights

This motor is ideal for condenser fan applications due to its reliable performance and thermal protection features.

Product Information

Standard Information

  • Brand: Century Motors
  • MPN: EM3728F

Technical Specifications

  • Voltage Rating: 208 to 230 Volt AC 1-Phase
  • Frequency Rating: 60 Hertz
  • Motor FLA: 1.8 to 2 Amp
  • NEMA Frame Size: 48Y
  • Frame Material: Steel
  • Weight: 11 Pound
  • Insulation Class: F
  • Shaft Type: Flat
  • Ambient Temperature Rating: 70 Deg C
  • Includes: 36 Inch Lead
