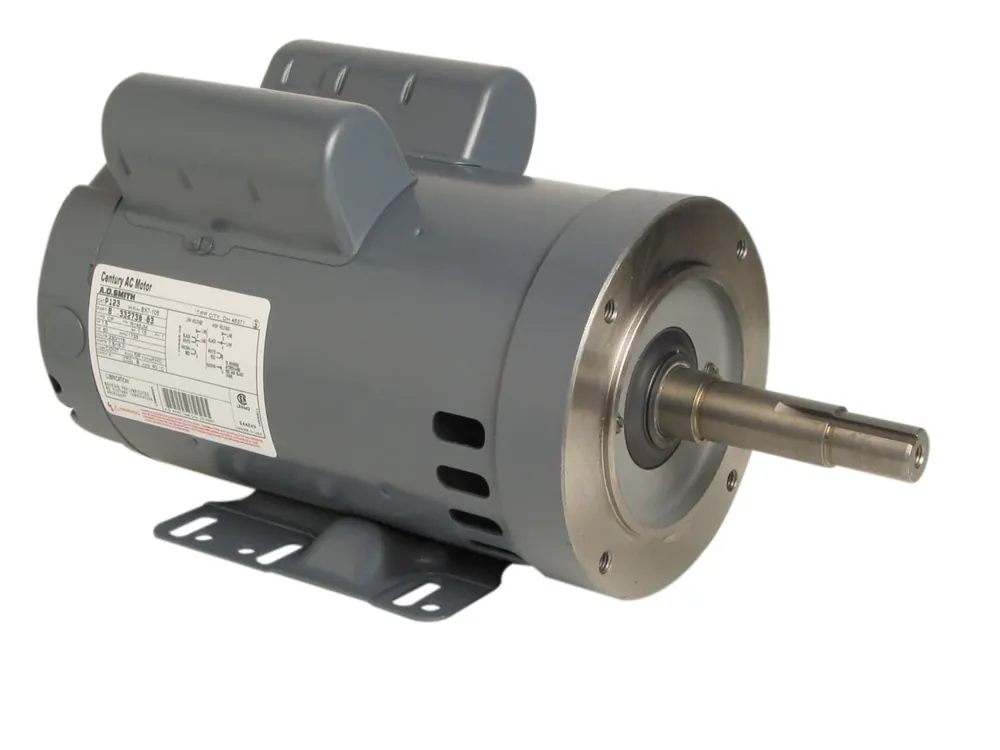

Luxury Century UP123 Close Coupled Pump Motor 1.5 HP 230/115V

The Century UP123 Close Coupled Pump Motor is designed for reliable performance in various applications. This motor offers a capacitor start, capacitor run electrical type with single or dual voltage options. It operates at 1.5 HP with a 1725 RPM speed, housed in a drip-proof enclosure with a 1-phase connection.

• Capacitor start, capacitor run
• 1.5 HP power
• Dual voltage 230/115V

Product Highlights

The Century UP123 motor is suitable for VFD use with variable torque and constant torque ratios. It features class B insulation for maximum temperature rating, a service factor of 1.15 on sinewave and 1.0 on IGBT power, and double-sealed ball bearings for enhanced durability.

Product Information

Standard Information

• Brand: Century
• MPN: UP123

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• HP: 1.5
• RPM: 1725
• Enclosure: Drip Proof
• Phase: 1
• Voltage: 230/115
• Rotation: Reversible Counterclockwise
• Material: Rolled Steel
• Amperage: 7.5/15.0
• Shaft Type: JM
• Shaft Diameter: 1.156
• Shaft Extension: 4.28
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Service Factor: 1.15
• Frequency: 60
• Insulation Class: B
• Frame: R145JM
• Mounting: Rigid Base
