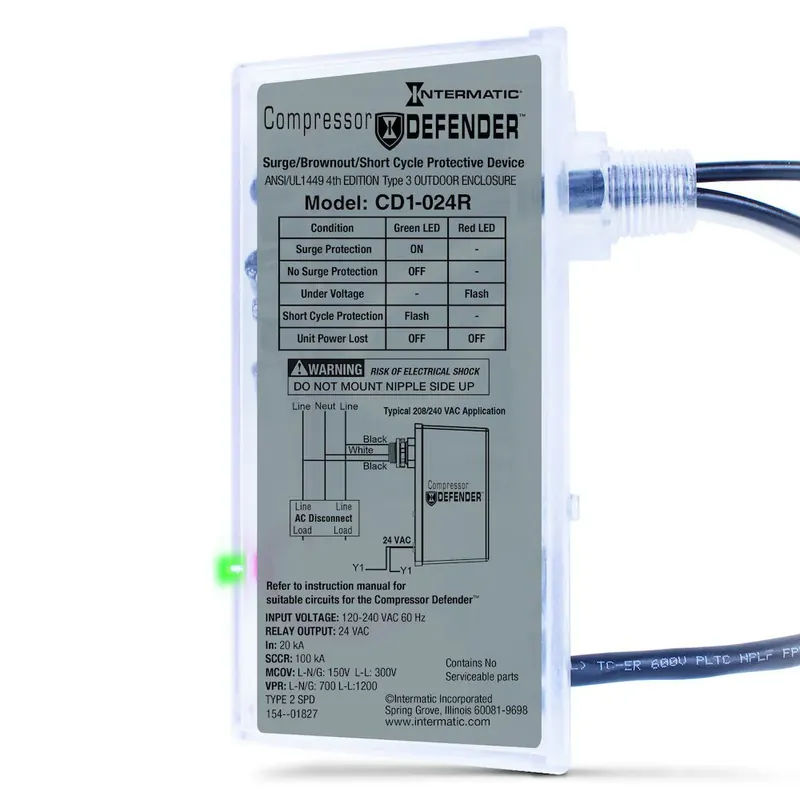

Mega Sale Intermatic CD1-024R Compressor Defender – Condenser Surge Protector – 120-240 V

The Intermatic CD1-024R Compressor Defender is essential for protecting your air conditioning units from power surges and voltage issues. This surge protection device safeguards HVAC compressors and circuit boards from damage due to undervoltage, overvoltage, brownouts, and surges. It is suitable for both residential and light commercial applications.

• UL1449 3rd Edition certified surge protector
• Compatible with HVAC systems operating on 120-240 VAC
• Offers a three-year warranty with $7,500 connected equipment coverage

Product Highlights

This Compressor Defender is designed to be installed inside your condensing unit or externally at the disconnect. It features auto-sense voltage technology that accommodates a range of 120 to 240 VAC, ensuring broad compatibility across various HVAC units.

Product Information

Standard Information

• Brand: Intermatic
• MPN: CD1-024R
• Item Number: 45580
• Type: Surge Protective Device

Technical Specifications

• Operating Voltage: 120-240 VAC
• Amperage Rating: 24 Amps
• Surge Current Rating: 20 kA
• Nominal Discharge Current: 10 kA
• Dimensions: 6.48 inches (H) x 4 inches (W) x 1.6 inches (D)
• Weight: 1.2 pounds
• Operating Temperature: -40°F to 158°F
