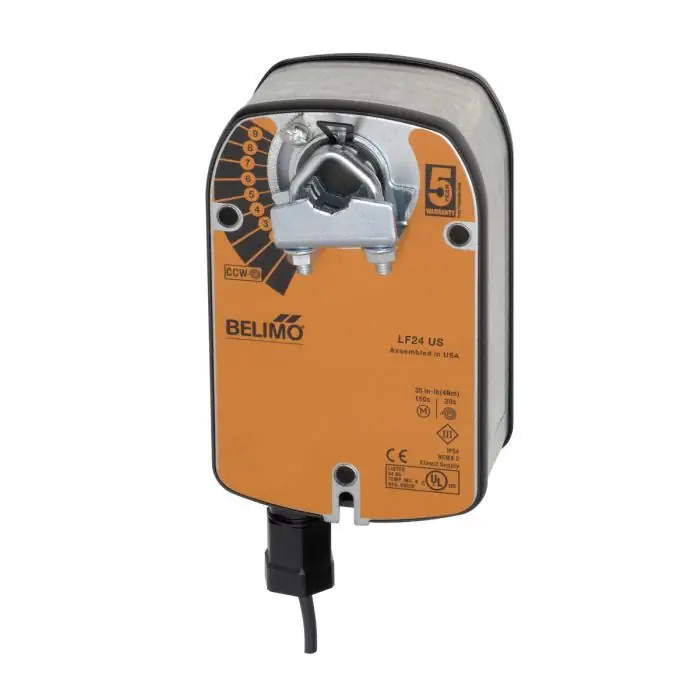

New Arrival Belimo LF24-S US Direct Coupled Actuator 35 in-lb

The Belimo LF24-S US is a direct coupled actuator with a torque rating of 35 in-lb. It operates on 24 VAC/DC and features spring return functionality ideal for HVAC systems. Its design supports On/Off controls which can be activated from auxiliary contacts or manual switches. This actuator mounts directly onto damper shafts ranging from three-eighths inch to one-half inch in diameter using a universal clamp.

• True spring return operation for reliable control.
• Adjustable auxiliary switch for safety signaling.
• Wide operating temperature range from -22°F to 122°F.

Product Highlights

This actuator is suitable for use in HVAC dampers and features mechanisms that ensure a fail-safe operation.

Product Information

Standard Information

• Brand: Belimo
• Power: 24 VAC/DC
• Type: Direct Coupled Actuator

Technical Specifications

• Torque: 35 in-lb
• Control Type: On/Off
• Angle of Rotation: 95°
• Auxiliary Switch: 1 x SPDT
• Operating Conditions: -22°F to 122°F
• Power Consumption: 5 W running, 2.5 W holding
• Connection: Two 3 ft. 18 GA appliance cables with 1/2 in. conduit connectors
• Degree of Protection: IP54 NEMA 2
