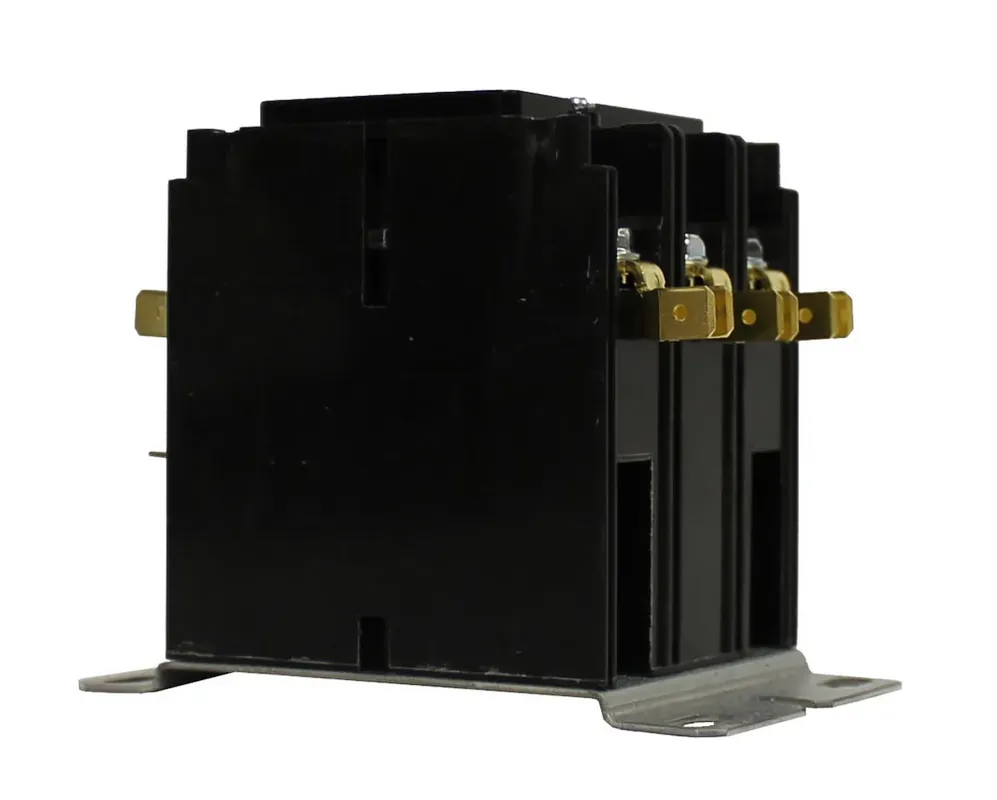

PEMS H330A Definite Purpose Contactor 3 Poles 24V AC Fresh Stock

The PEMS H330A Definite Purpose Contactor is a versatile and reliable electrical component. It is designed for use in HVAC systems and various industrial applications. The device ensures efficient control of electrical power circuits.

• 3 Poles
• Locked Rotor Amps: 180 / 150 / 120
• Resistive AMPS: 40

Product Highlights

The PEMS H330A is built for dependable operation in demanding environments. It features quick connect terminals and a mounting plate for easy installation.

Product Information

Standard Information

• Brand: PEMS
• MPN: H330A
• Country of Origin: United States of America
• Includes: Mounting plate, Quick connect terminals, Binding head screws

Technical Specifications

• Number of Poles: 3
• Locked Rotor Amps: 180 / 150 / 120
• Resistive AMPS: 40
• Coil AC Volts: 24
• Coil VA Inrush 60 HZ: 60
• Coil VA Sealed 60 HZ: 6
• Coil VA Inrush 50 HZ: 65
• Coil VA Sealed 50 HZ: 7.5
• HP 120 Volts 1 Phase: 2
• HP 208 Volts 1 Phase: 0
• HP 240 Volts 1 Phase: 5
• HP 208 Volts 3 Phase: 0
• HP 240 Volts 3 Phase: 10
• HP 480 Volts 3 Phase: 15
• HP 600 Volts 3 Phase: 20
• Length: 3.25 inches
• Width: 1.76 inches
• Height: 2.99 inches
