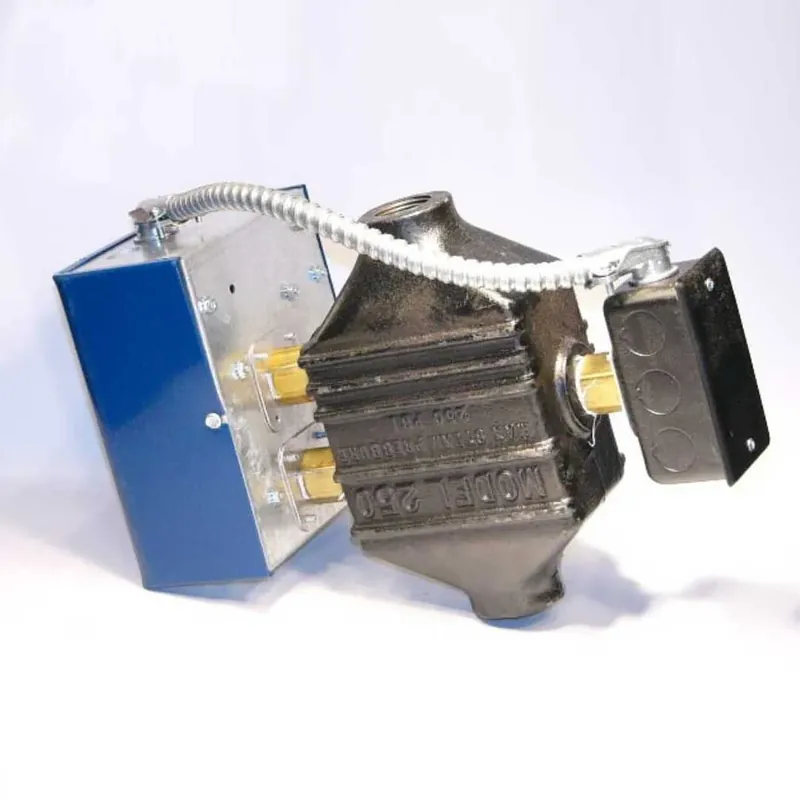

Premium Hydrolevel 250 Combination Pump Control & LWCO 120 Volt 250 psi

The Hydrolevel 250 Combination Pump Control and Low Water Cut-Off is designed for hot water boilers. This 120 volt unit operates a boiler feed pump to maintain water level between middle and upper probes. If the water level drops below the bottom probe, the burner circuit contacts open. The burner restarts automatically when the water level returns to normal.

• 120 volt operation
• Maintains water level with three EL1214 sensing probes
• Automatic burner reset on water level normalization

Product Highlights

The Hydrolevel 250 ensures reliable boiler operation by controlling water levels and preventing dry firing conditions. It’s suitable for various hot water boiler applications requiring accurate water level management.

Product Information

Standard Information

• Brand: Hydrolevel
• MPN: 250
• Model: SAFGARD 250
• Application: Hot Water Boilers
• Control Reset: Automatic

Technical Specifications

• Control Switch: N/A
• Voltage: 120V
• Max Pressure: 250 psi
• Connection Size: 1 inch
• Control Connection: NPT
• Installation Method: 1 Equalizing Piping
• Weight: 17.59 lbs
