Regal Rexnord - Century Motors FC1086AF 0.8 HP, 200 to 230/460 VAC 60 Hz 1-Phase Condenser Fan Motor Next Day Delivery
Home / Condenser Fan Motors / Regal Rexnord – Century Motors FC1086AF 0.8 HP, 200 to 230/460 VAC 60 Hz 1-Phase Condenser Fan Motor Next Day Delivery

Regal Rexnord – Century Motors FC1086AF 0.8 HP, 200 to 230/460 VAC 60 Hz 1-Phase Condenser Fan Motor Next Day Delivery

Original price was: $370.09.Current price is: $148.04.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0056838 Category: Tag:
Share

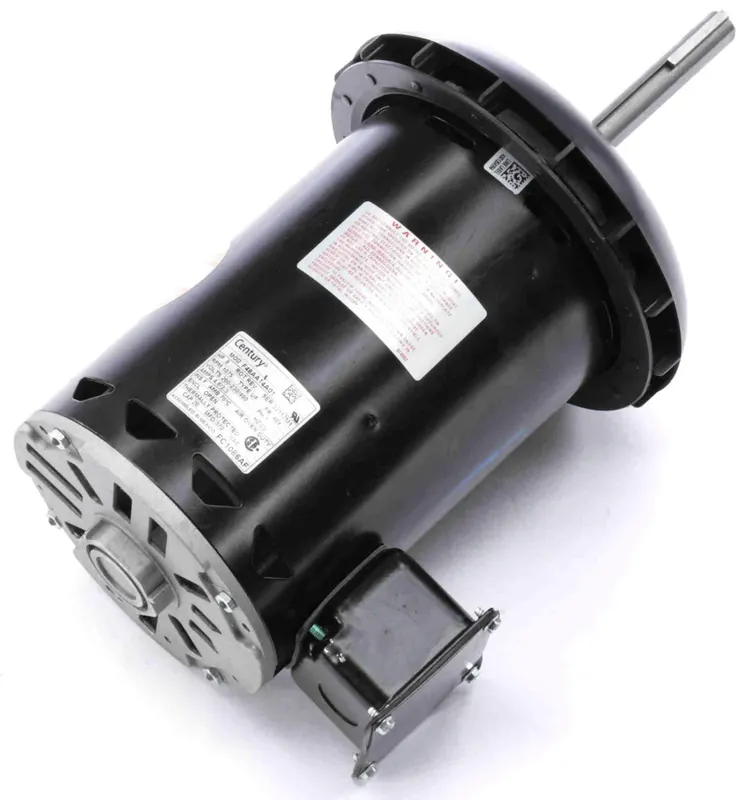

The Regal Rexnord – Century Motors FC1086AF is a condenser fan motor with a power rating of 0.8 HP. It operates at 200 to 230/460 volts in a single-phase system. This motor has a speed rating of 1075 RPM and is designed for durability and efficiency in HVAC applications.

  • Voltage: 200 to 230/460 VAC
  • Amperage: 4.6/2.3 A
  • Reversible with a 6-pole configuration

Product Highlights

This motor features a rolled steel frame and a round belly band mount, making it suitable for various installation setups. Its low-profile design fits easily into tight spaces.

Product Information

Standard Information

  • Manufacturer: Regal Rexnord – Century Motors
  • UPC: 0786674020369

Technical Specifications

  • Power Rating: 0.8 HP
  • Enclosure Type: Open Air-Over
  • NEMA Frame Size: 48Y
  • Insulation Class: F
  • Speed Rating: 1075 RPM
  • Weight: 26 lb
  • Mounting Type: Round Belly Band
  • Ambient Temperature Rating: 70°C
