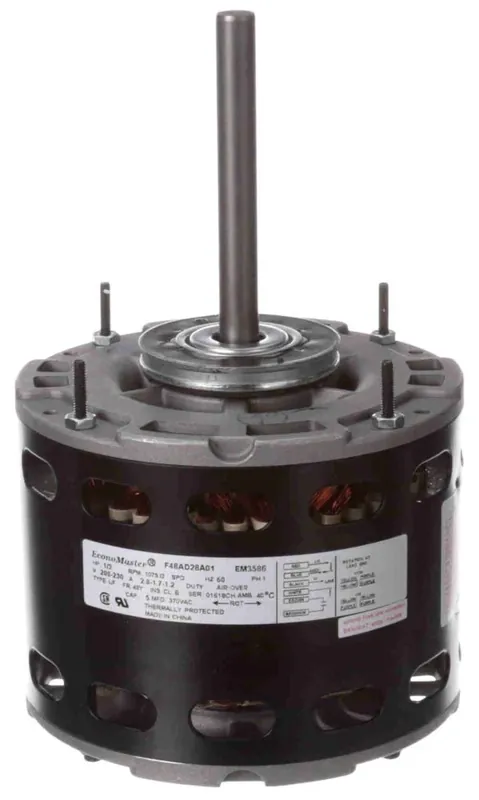

Save Now Century EM3586 1/3 HP 208 to 230 VAC 60 Hz Blower Motor

The Century Motors EM3586 is a direct drive fan and blower motor with a power rating of one-third horsepower and operates at a voltage of two hundred eight to two hundred thirty volts in a single-phase setup. This motor is suitable for various HVAC applications, offering reliable performance with three-speed options at seven hundred seventy-five revolutions per minute. It features a rolled steel frame and is designed for open air-over enclosure, making it ideal for both residential and commercial settings.

• Power Rating: 1/3 HP
• Voltage: 208 to 230 Volt AC, 60 Hz
• Reversible Operation

Product Highlights

This motor comes equipped with Class B insulation and is thermally protected, ensuring long-term reliability. It supports a maximum ambient temperature of forty degrees Celsius and utilizes a permanent split capacitor design for efficient operation.

Product Information

Standard Information

• Manufacturer: Century Motors
• Frame Size: NEMA 48Y

Technical Specifications

• Motor FLA: 2.5/1.6/1.2 Amp
• Number of Speeds: 3
• Speed Rating: 1075 RPM
• Mounting: Extended Stud
• Insulation Class: B
• Weight: 12 Pound
• Shaft Type: Flat
• Ambient Temperature Rating: 40 Deg C
