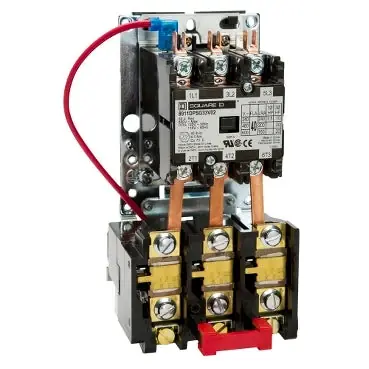

Square D 8911DPSO23V06 3-Pole 25Amp 480VAC NEMA Starter Free Returns

The Square D 8911DPSO23V06 is a 3-pole, 25-amp, 480VAC definite purpose starter, designed for applications with low duty cycles such as air compressors, agricultural equipment, pumps, and HVAC systems. This starter is supplied with a non-replaceable coil, available in a variety of voltages, and includes auxiliary contacts. Its overload relay employs Type B thermal units to detect overcurrent conditions.

• Designed for low duty cycles
• Includes auxiliary contacts
• Thermal overload protection with Type B units

Product Highlights

This starter, rated for up to 25 HP at 575 VAC poly phase, supports a range of motors and is ideal for HVAC systems and other industrial applications requiring reliable starting and stopping mechanisms.

Product Information

Standard Information

• Brand: Square D
• MPN: 8911DPSO23V06

Technical Specifications

• Amperage: 25 A
• Voltage: 480VAC
• Phases: 3 Phase
• Number of Poles: 3 Pole
• Enclosure: Open
• Standards: UL Recognized
