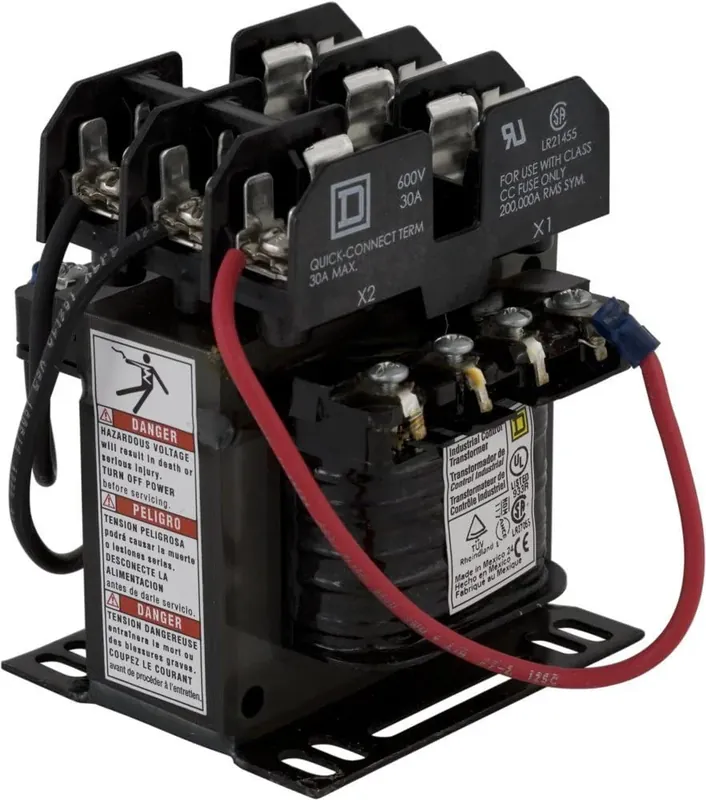

Square D 9070TF100D1 Control Transformer 240VAC, 480VAC to 120VAC 100VA Luxury

Square D 9070TF100D1 control transformer effectively converts high voltage inputs of 240VAC and 480VAC to a lower 120VAC output. This transformer is designed for various industrial applications and features a durable construction with a power rating of 100VA and a 1-phase operational capability. The transformer is equipped with primary and secondary fuses for short-circuit protection, ensuring safe operation and durability. This model adheres to UL, CSA, and CE standards.

• Primary voltage: 240VAC, 480VAC
• Secondary voltage: 120VAC
• Power rating: 100VA

Product Highlights

This control transformer is ideal for machinery OEMs and panel builders, offering reliable voltage conversion and regulation. The top-mounted fuse block design saves space and enhances safety features.

Product Information

Standard Information

• Manufacturer: Schneider Electric
• Brand: Square D
• Country of Origin: Mexico
• Warranty: 18 months

Technical Specifications

• Power Rating: 100VA
• Primary Voltage: 240VAC, 480VAC
• Secondary Voltage: 120VAC
• Phase: 1 Phase
• Type: Industrial Control Transformer
• Fuse Type: CC, size 0.41 x 1.50 inches
• Winding Material: Copper
• Temperature Rating: 55 degrees C
