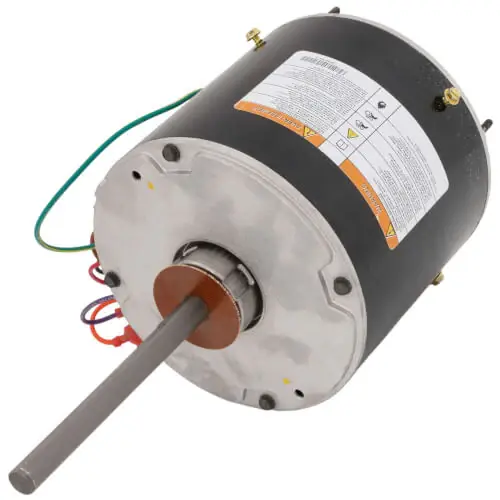

Top Pick DiversiTech WG840468 1/2 - 1/5 HP, 208-230 VAC Condenser Fan Motor (1075 RPM)
Home / Ventilation Motors / Top Pick DiversiTech WG840468 1/2 – 1/5 HP, 208-230 VAC Condenser Fan Motor (1075 RPM)

Top Pick DiversiTech WG840468 1/2 – 1/5 HP, 208-230 VAC Condenser Fan Motor (1075 RPM)

Original price was: $128.79.Current price is: $51.52.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0019213 Category: Tag:
Share

DiversiTech WG840468 is a 1/2 – 1/5 horsepower, 208-230 volt condenser fan motor designed for various HVAC applications. This motor operates at 1075 RPM and provides reliable performance in condenser units. It is engineered for both energy efficiency and durability, making it suitable for contractors and service professionals.

  • Multi-horsepower design from 1/2 to 1/5 HP
  • Reversible rotation for installation flexibility
  • Standard 48-frame motor casing

Product Highlights

This condenser fan motor includes features such as an automatic thermal overload protector and Class B insulation. The installation is streamlined thanks to extended bolts and lead wires.

Product Information

Standard Information

  • Type: Permanent Split Capacitor
  • Voltage: 208-230 V

Technical Specifications

  • RPM: 1075
  • Weight: 17.35 lbs
  • Shipping Dimensions: 12.9 x 7.2 x 6.75 inches
  • Amperage: 1.3 to 2.5 A
  • Insulation Class: B
  • Max Ambient Temperature: 140 °F
  • Bearings: Ball
  • Overload Protection: Automatic, Thermally
