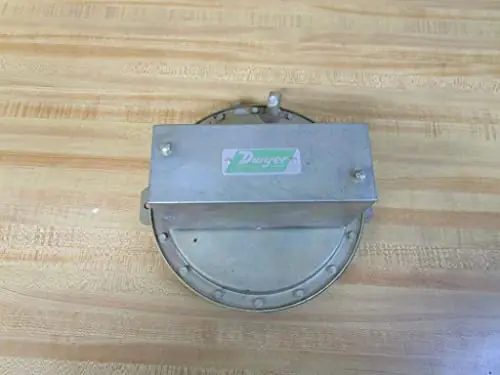

Top Pick Dwyer 1626-1 SPDT Pressure Switch – Reliable HVAC Control

The Dwyer Model 1626-1 SPDT Pressure Switch is engineered for precision and reliability, ideal for HVAC applications where consistent and leak-proof performance is necessary.

• Robust SPDT configuration suitable for versatile control needs.
• Effective operation in a pressure range from 0.15 to 1.5 inches W.C.
• Sealed diaphragm ensures leak-proof operation and accuracy.

Product Highlights

This pressure switch features a single SPDT switch setup that can be seamlessly integrated into HVAC systems. Suitable for both air and non-combustible, compatible gases, it has a maximum pressure limit of 50 inches W.C. for continuous operation and 2 psig surge.

Product Information

Standard Information

• Brand: Dwyer Instruments
• MPN: 1626-1

Technical Specifications

• Pressure Type: SPDT – Single Pole Double Throw
• Pressure Range: 0.15 to 1.5 inches W.C.
• Electrical Rating: 15 A at 120 to 480 VAC
• Temperature Range: -30 to 130 degrees Fahrenheit
• Connection Type: 1/8 inch female NPT
• Agency Approvals: CE certified
