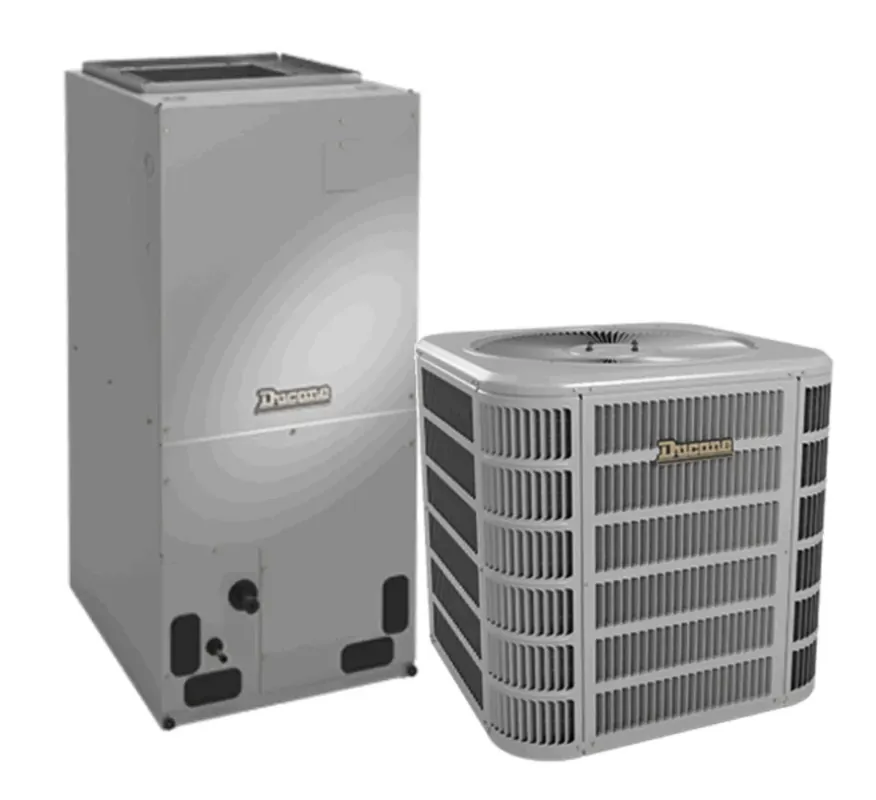

Trusted Brand Ducane 3 Ton Residential Air Conditioning Split System – 15.1 SEER

BCE5C Air Handler:

Application

• For 3 ton systems
• Sequenced for demand management
• External access to heater circuit breakers

Installation

• 1 piece design
• Smaller profile for tight application areas
• Multiposition – Factory ready for upflow, downflow, and horizontal left/right applications
• Approved for installation in manufactured housing and mobile homes

Cabinet

• Foil faced insulation for enhanced indoor air quality
• Double hemmed technology for increased structural rigidity
• Improved gasketing on doors to prevent air leaks
• Filter rack with thumb screws for easy access and removal
• Polymer plugs on drain locations for easy installation
• Baked polyester paint finished over galvanized steel for maximum
• durability
• High-strength, UV and heat resistant polymer drain pan designed for
• corrosion resistance
• Antimicrobial polymer drain pan built to resist mold and mildew
• growth
• 2% or less air leakage

Coils

• Omniguard™ total corrosion protection technology designed coil
• Enhanced tube-and-fin coil design featuring MHT™ Technology
• Lanced fins for maximum heat transfer
• Factory leak tested and pre-charged with nitrogen holding charge

Components

• Efficient PSC blower motor
• Standard transformer and blower relay
• Blower time delay for increased efficiency
• Sleeves on distributor tubing to protect tubes

Warranty

• 10 year limited warranty on all parts

4AC16L Condensing Unit:

Overview

• 3.0 Ton 14+ SEER Condensing Unit
• 28.25 Inches Width x 28.25 Inches Depth
• 3/8LL 7/8SL
• 30A MOCP
• 205 Lbs – Ships via Freight

Compressor

• High-efficiency scroll compressor
• Internally protected against high temperature motor overload conditions
• Heavy-duty materials

Cabinet

• Full metal louvered construction to protect the coil/hail protection
• Individual louver panels; 4 screws to remove for ease of coil cleaning and service
• Corner-mounted controls for easy service
• Baked polyester paint finished over galvanized steel for maximum durability
• 45-degree offset valves for easy service

Coils

• Omniguard total corrosion protection technology designed coil
• Enhanced tube-and-fin coil design featuring MHT Technology
• Lanced fins for maximum heat transfer
• Every coil factory tested for leakproof construction
• Raised coil prevents debris from impeding airflow

Components

• Factory installed high pressure switch
• Thread-on pressure switches with Schrader core for simple, quick replacement
• Filter drier shipped loose for installation flexibility
• Fan orifice for smoother airflow and sound level reduction
• Charged for 15 feet of line set

Warranty

• 10 year limited warranty on compressor
