US-Nidec FD32PM2DZYR Auger Drive Motor 1 1/2 HP 208-230/460V Authentic
Home / Auger Drive Motors / US-Nidec FD32PM2DZYR Auger Drive Motor 1 1/2 HP 208-230/460V Authentic

US-Nidec FD32PM2DZYR Auger Drive Motor 1 1/2 HP 208-230/460V Authentic

Original price was: $485.33.Current price is: $194.13.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0048053 Category: Tag:
Share

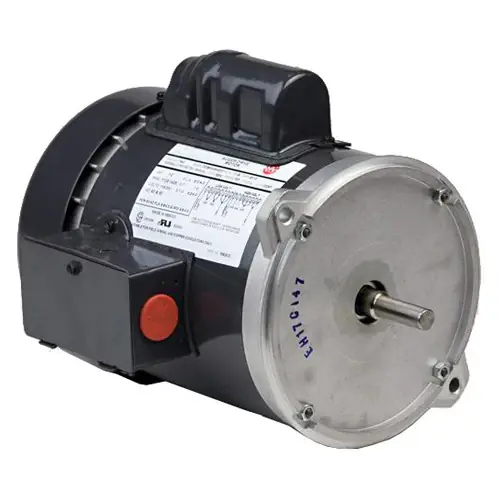

The US-Nidec FD32PM2DZYR Auger Drive Motor delivers reliable performance for farm duty operations. This three-phase motor features a power rating of 1 1/2 HP and operates at 208-230/460 volts. It is designed with a 56Y frame and a 6.5-inch diameter, enclosed in a TEFC (Totally Enclosed Fan Cooled) housing for protection against environmental elements.

  • Three-phase electrical type
  • 56Y frame diameter
  • Manual overload protection

Product Highlights

This US-Nidec motor integrates a single shaft and ball bearings type for durability, making it suitable for heavy-duty farm operations. Its rolled steel material ensures a robust build, while the N-Flange mounting type simplifies installation.

Product Information

Standard Information

  • Brand: US-Nidec
  • Model: FD32PM2DZYR

Technical Specifications

  • Motor Type: Auger Drive Motor
  • Electrical Type: Three Phase
  • Horsepower: 1 1/2
  • Frame: 56Y
  • Diameter: 6.5 inches
  • Enclosure: TEFC
  • Voltage: 208-230/460
  • Rotation: REV
  • Overload Protection: Manual
  • Material: Rolled Steel
  • Bearings Type: Ball / Ball
  • Mounting Type: N-Flange
  • Amperage: 4.5/2.2 & 4.5-4.5/2.2
  • Shaft Type: Single
  • Efficiency: 86.50 percent
  • Service Factor: 1.15
  • Insulation Class: B
