US-Nidec UJ25P1DP Close Coupled Pump Motor 25 HP 3600 RPM TEFC Fresh Stock
Home / Close Coupled Pump Motors / US-Nidec UJ25P1DP Close Coupled Pump Motor 25 HP 3600 RPM TEFC Fresh Stock

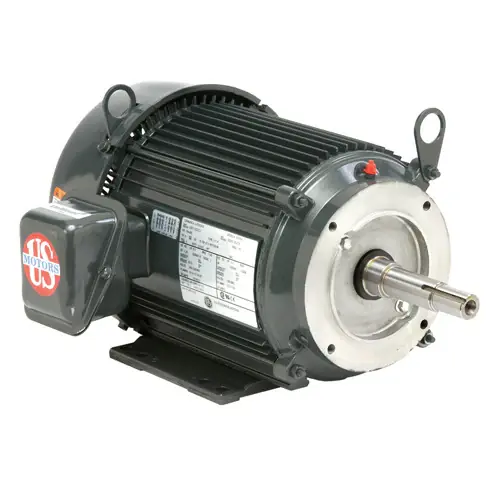

US-Nidec UJ25P1DP Close Coupled Pump Motor 25 HP 3600 RPM TEFC Fresh Stock

Original price was: $3,226.76.Current price is: $1,290.70.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0048073 Category: Tag:
Share

Product Description

The US-Nidec UJ25P1DP is a close coupled pump motor with a three-phase design. This motor has a horsepower rating of twenty-five and operates at three thousand six hundred RPM. It features a totally enclosed fan-cooled (TEFC) enclosure and is constructed from cast iron, providing durability and strength.

  • Electrical Type: Three Phase
  • Voltage: 208-230/460
  • Mounting: C-Face / Footed

Product Highlights

This motor is ideal for various pumping applications, providing reliable power in demanding environments.

Product Information

Standard Information

  • Frame: 284JP
  • Overload Protector: None

Technical Specifications

  • Motor Type: Close Coupled Pump Motor
  • Amperage: 65-57/28.4
  • Shaft Type: Single
  • Efficiency: 91.70%
  • Bearing Type: Ball / Ball
  • Bearing Sizes: 6207-2Z-J/C3 / 6311-2Z-J/C3
  • Service Factor: 1.25
  • Insulation Class: F
