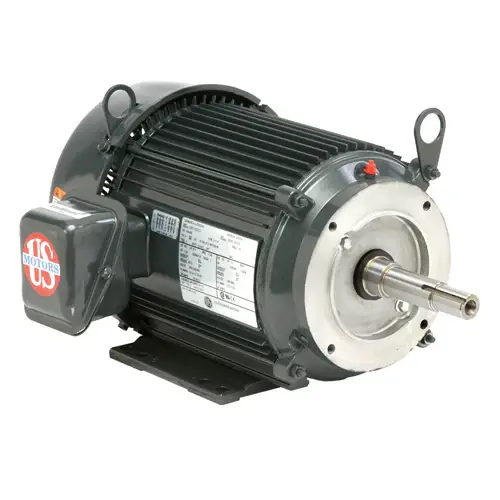

US-Nidec UJ7P1DM Close Coupled Pump Motor Three Phase 7.5 HP 3600 RPM 208-230/460V TEFC Final Sale
Home / Variable Speed Motors / US-Nidec UJ7P1DM Close Coupled Pump Motor Three Phase 7.5 HP 3600 RPM 208-230/460V TEFC Final Sale

US-Nidec UJ7P1DM Close Coupled Pump Motor Three Phase 7.5 HP 3600 RPM 208-230/460V TEFC Final Sale

Original price was: $1,278.00.Current price is: $511.20.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0051091 Category: Tag:
Share

The US-Nidec UJ7P1DM is a robust close coupled pump motor designed for various industrial applications. It provides reliable three-phase power with a horsepower rating of 7.5 and operates at 3600 RPM. This motor supports voltages of 208-230/460V and has a Totally Enclosed Fan Cooled (TEFC) enclosure for enhanced durability and efficiency.

  • Three-phase power, 7.5 HP
  • 3600 RPM, 208-230/460V
  • TEFC aluminum enclosure

Product Highlights

The US-Nidec UJ7P1DM Close Coupled Pump Motor excels in demanding environments. It’s perfect for industrial settings requiring consistent and powerful performance.

Product Information

Standard Information

  • Brand: US-Nidec
  • MPN: UJ7P1DM
  • Type: Motor > Pump Motor > Close Coupled Pump Motor
  • Amperage: 19.9-17.8/8.9
  • UPC: 786382114015

Technical Specifications

  • Electrical Type: Three Phase
  • Horsepower: 7.5
  • RPM: 3600
  • Frame: 213JM
  • Enclosure: TEFC
  • Voltage: 208-230/460
  • Rotation: REV
  • Material: Aluminum
  • Bearings Type: Ball / Ball
  • Bearings Size: 6206-2Z-J/C3 / 6309-2Z-J/C3
  • Mounting: C-Face / Footed
  • Efficiency: 91.00%
  • Insulation Class: F
  • Service Factor: 1.25
  • Frame Size: 213
  • Frame Suffix: JM
  • C Dimension: 19.900
  • Country of Origin: Mexico
